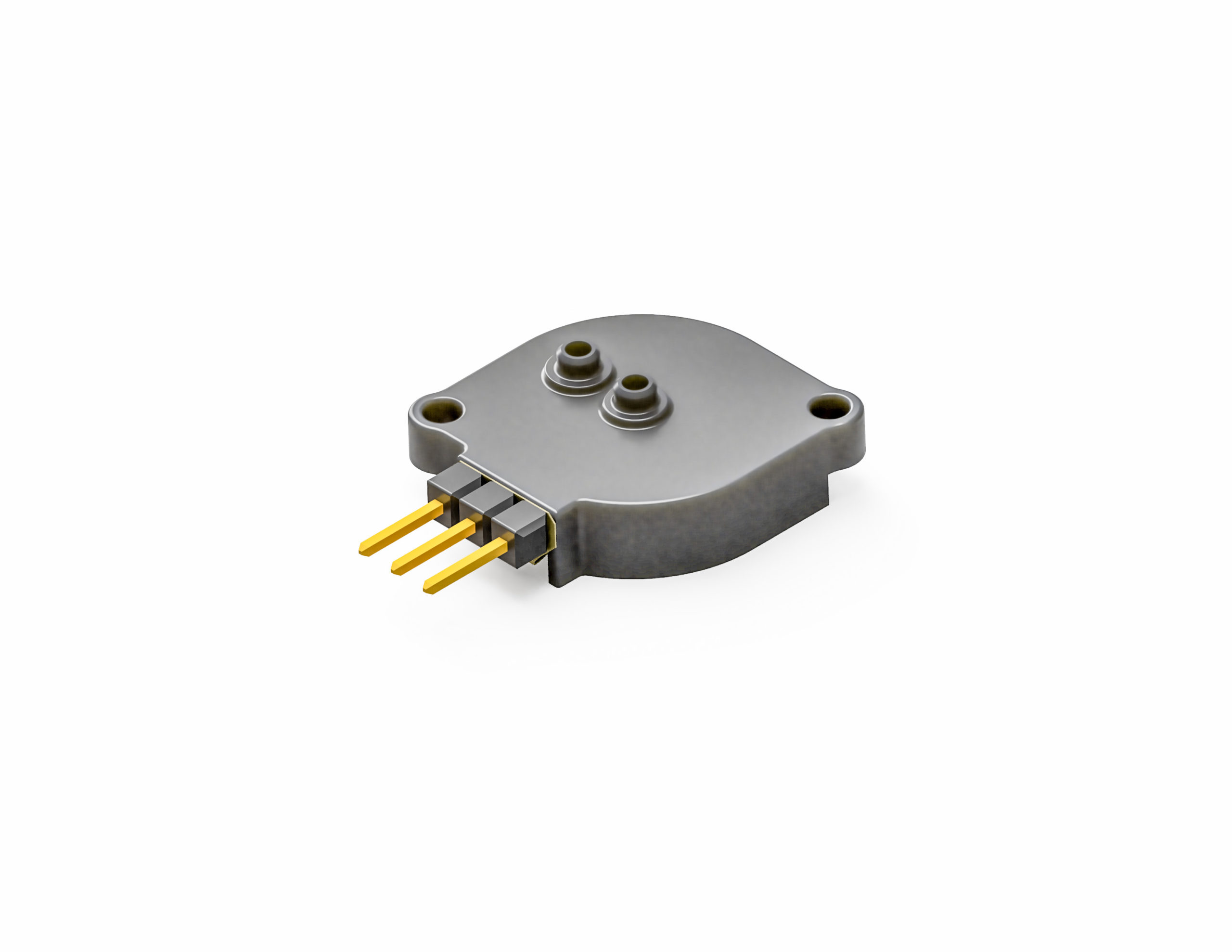

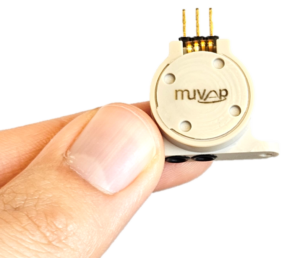

Liquid valves

muVaP valves provide a unique set of characteristics. They can cover a wide range of pressures/flowrates, and offer ultra-energy efficiency, fast response time, compact size, light weight, long life-time, silent operation, and no heat generation.

Valve Type2/2
PressureUp to 2 bar
Flowrate> 300 ml/min
Valving mediaLiquids

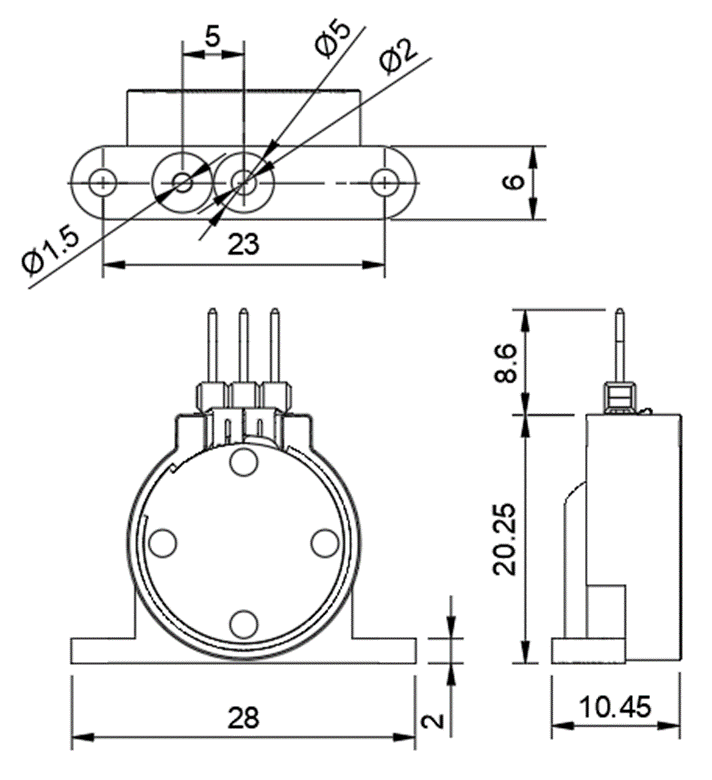

Dimensions (without connectors)18 x 19 x 7 mm
Fluidic connectionBarbed (6 mm)
Orifice diameter2.0 mm
Switching time < 10 ms
Electric connectorPin connector
Total power consumptionDriver in steady-state:   35 mW

We are here to address your requests for even higher ranges of operation. Feel free to contact us for any specific information!
