muVaP valves provide a unique set of characteristics. They can cover a wide range of pressures/flowrates, and offer ultra-energy efficiency, fast response time, compact size, light weight, long life-time, silent operation, and no heat generation.
|Pressure||Up to 10 bar|
|Flowrate||Up to 50 l/min|

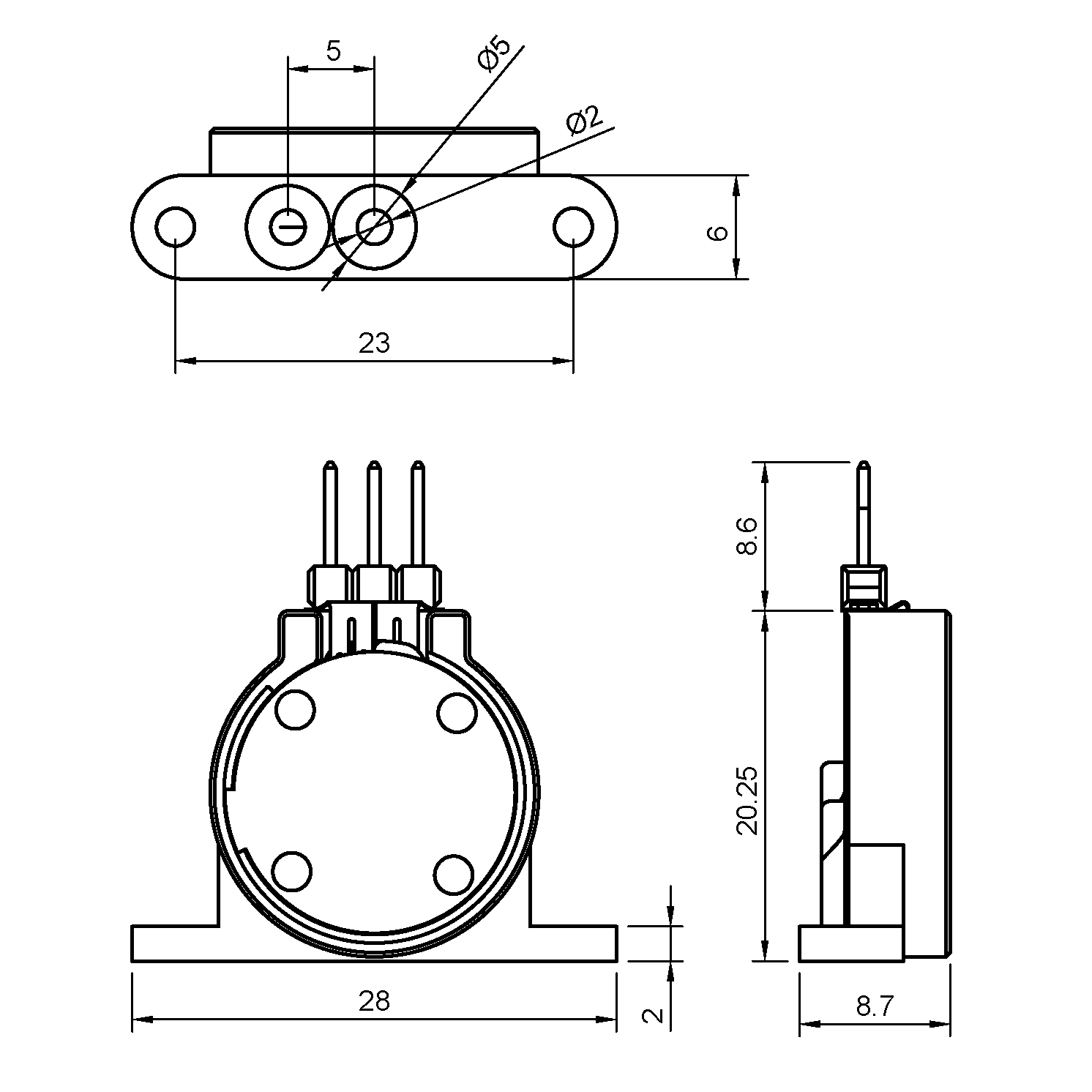

|Dimensions (without connectors)||18 x 19 x 7 mm|
|Fluidic connection||Barbed (6 mm)|
|Orifice diameter||2.0 mm|
|Switching time||< 10 ms|
|Electric connector||Pin connector|
|Total power consumption||Driver in steady-state: 35 mW|
We are here to address your requests for even higher ranges of operation. Feel free to contact us for any specific information!
