Generic piezo electricity

Piezoelectricity is the electromechanical characteristic of some material with a non-symmetrical crystal structure which allows them to convert an electrical voltage into a mechanical motion or vice versa.

With a novel design and patented technology, muVaP has developed the next generation of piezo devices, thanks to its patented technology.

Actuators

Compared to the traditional piezoelectric bending cantilevers or bending discs, muVaP actuators offer significantly higher performances. Within the same dimension and under the same applied voltages, muVaP actuators can offer up to 10 times more displacement, while providing even higher forces. In addition, thanks to their excellent stress characteristics, muVaP actuators demonstrate superior lifetime.

  • Displacement: Up to 100s of ┬Ám
  • Forces: Up to 100 N
  • Pressures: in the MPa range
  • Life cycels: Up to 100s of Millions of life cylces
  • Energy consumtion < 10 mJ
  • Thin and compact size
  • Response times within ms

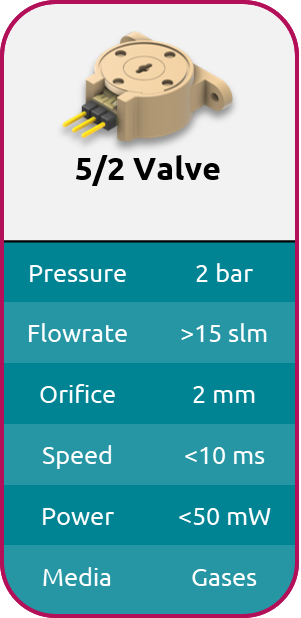

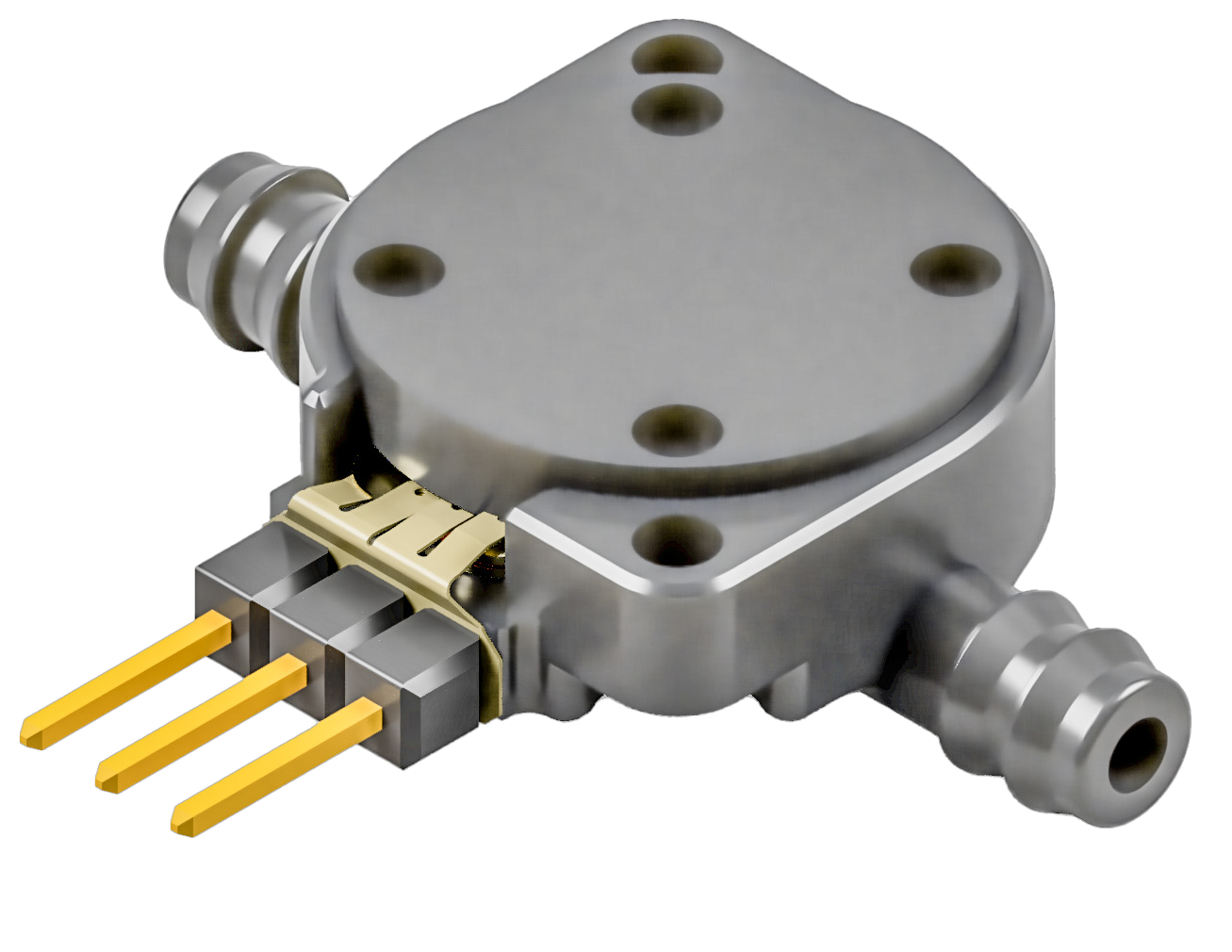

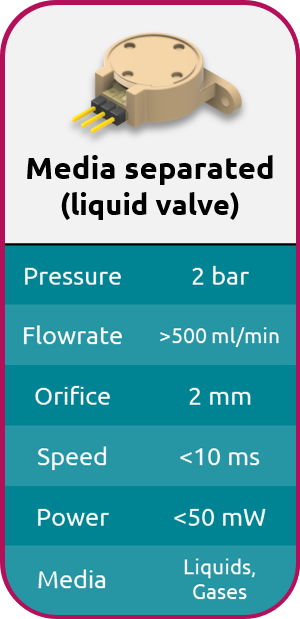

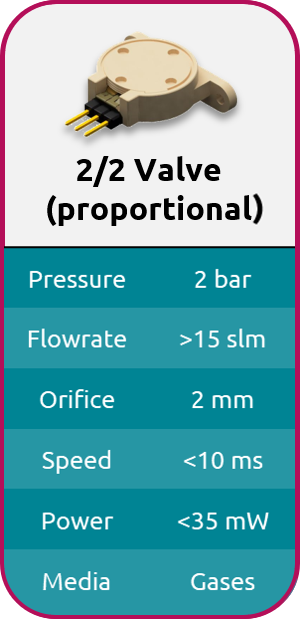

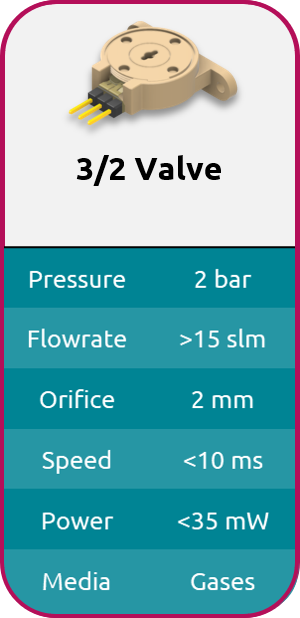

Valves

muVaP valves offer a unique combination of USPs, making them a great fit to a wide range of applications.

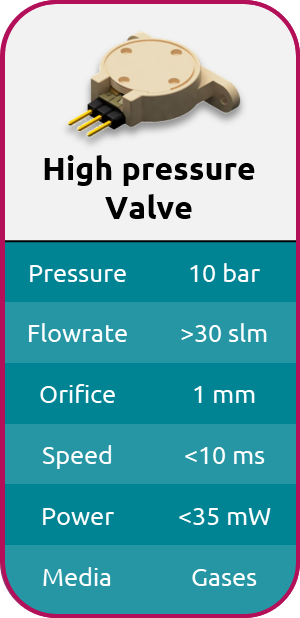

High pressure

High Pressures: up MPa range

High flowrate

High Flowrates: > 100 l/min

Ultra-low power

Ultra-low Power Consumption: as low as 30 mW

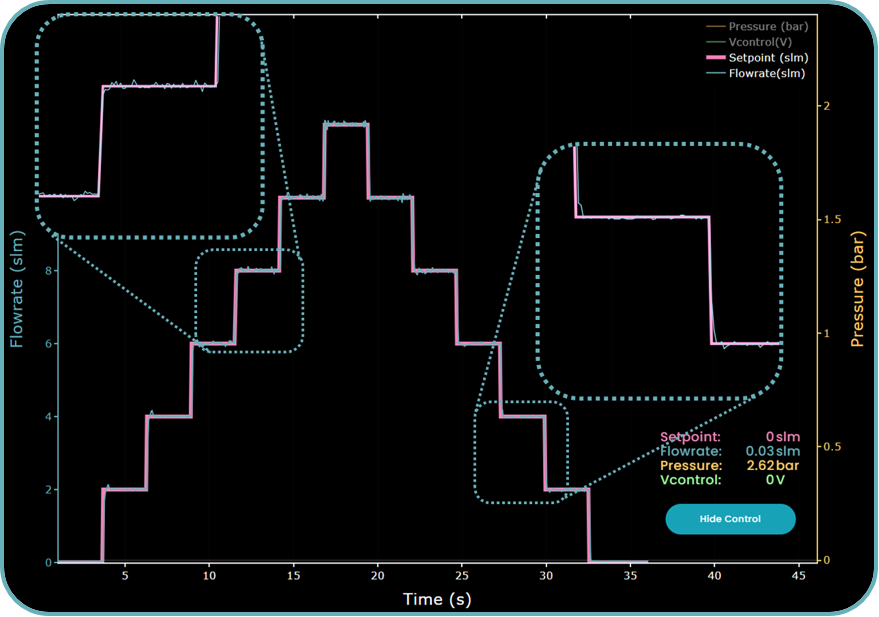

Fast response time

Fast response time: a few ms

Compact size

Compact size: 18 x 19 x 6 mm

Light weight: 3 g

Long lifetime: 10s of Millions of cycles

Battery operable

Battery operable

Silent operation

Silent operation

No heat generation

No heat generation

Modular

Modular

The answer is
in the details.

Are you looking for a solution to optimize or even realize your product? Maybe we can help you. Just get in touch with us!
