Ultra-low power consumption, silent operation, and unmatched performance — all in one compact form.
muVaP’s next-generation piezoelectric proportional valves deliver exceptional versatility for industrial and medical applications. Our Proportional valves are engineered to handle a wide range of pressures and flow rates.
Product Overview

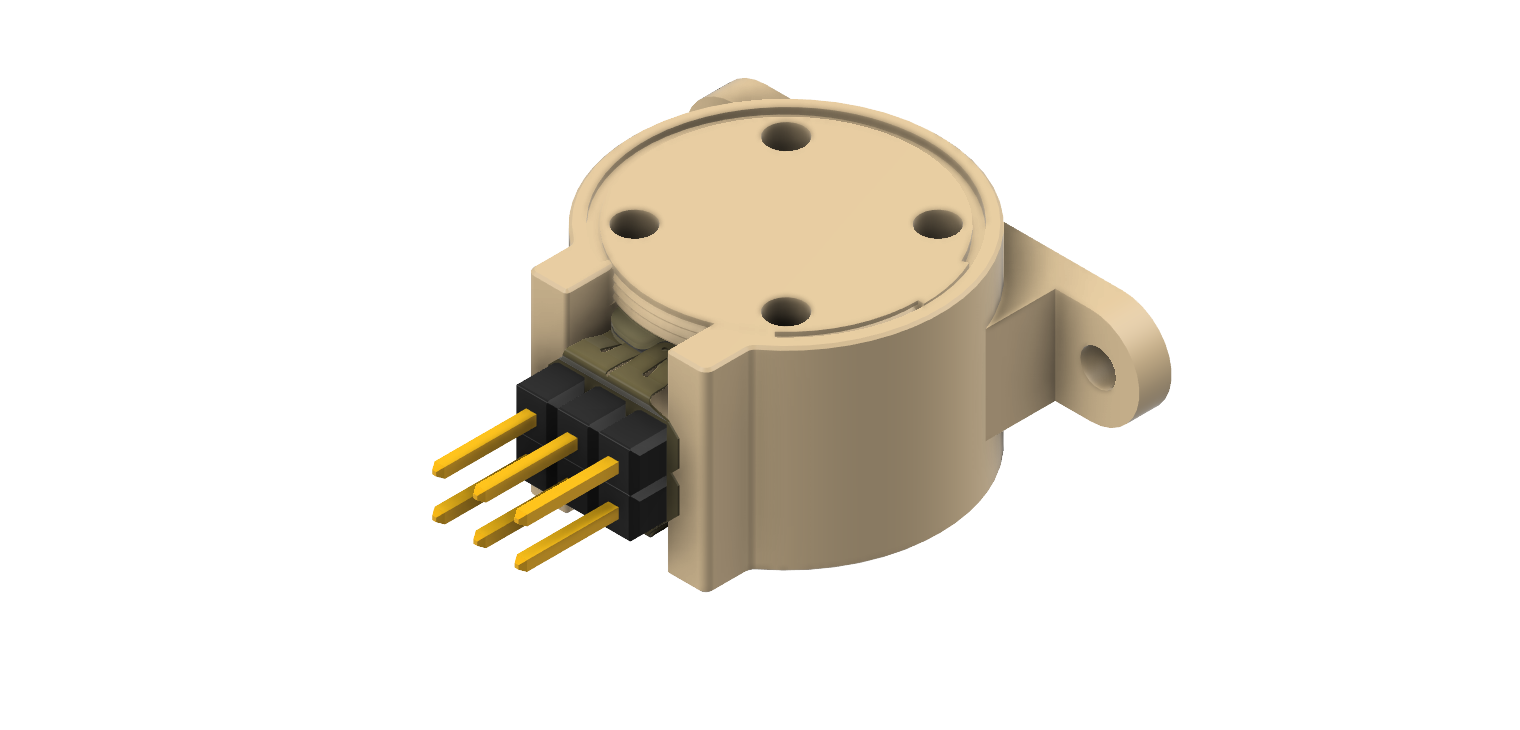

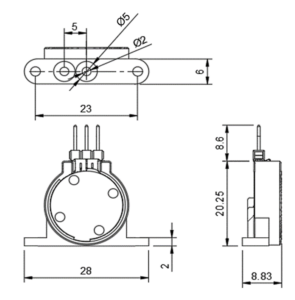

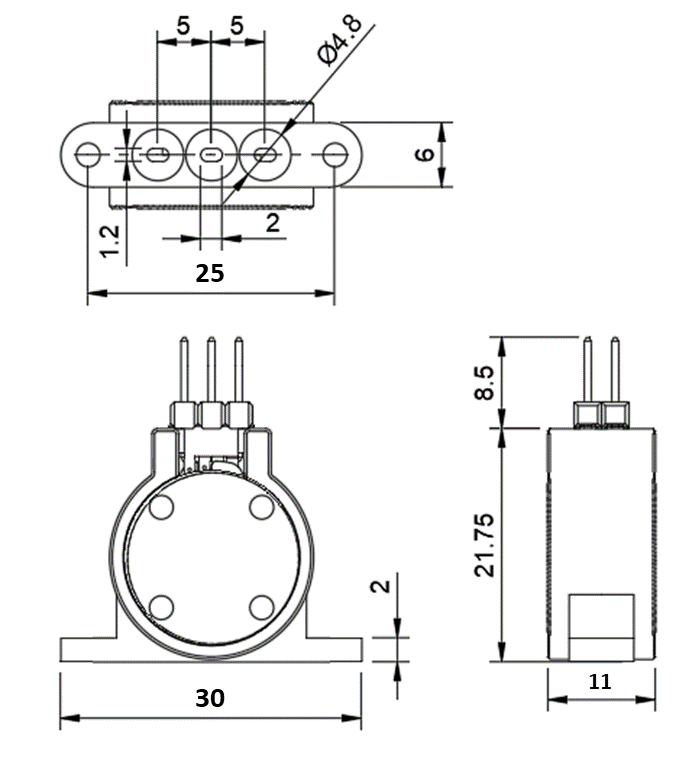

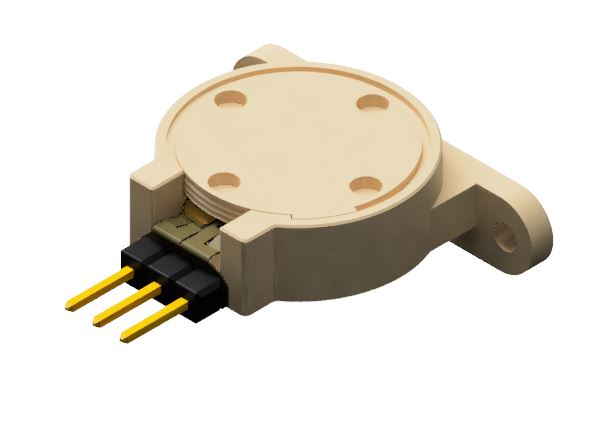

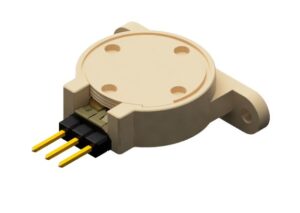

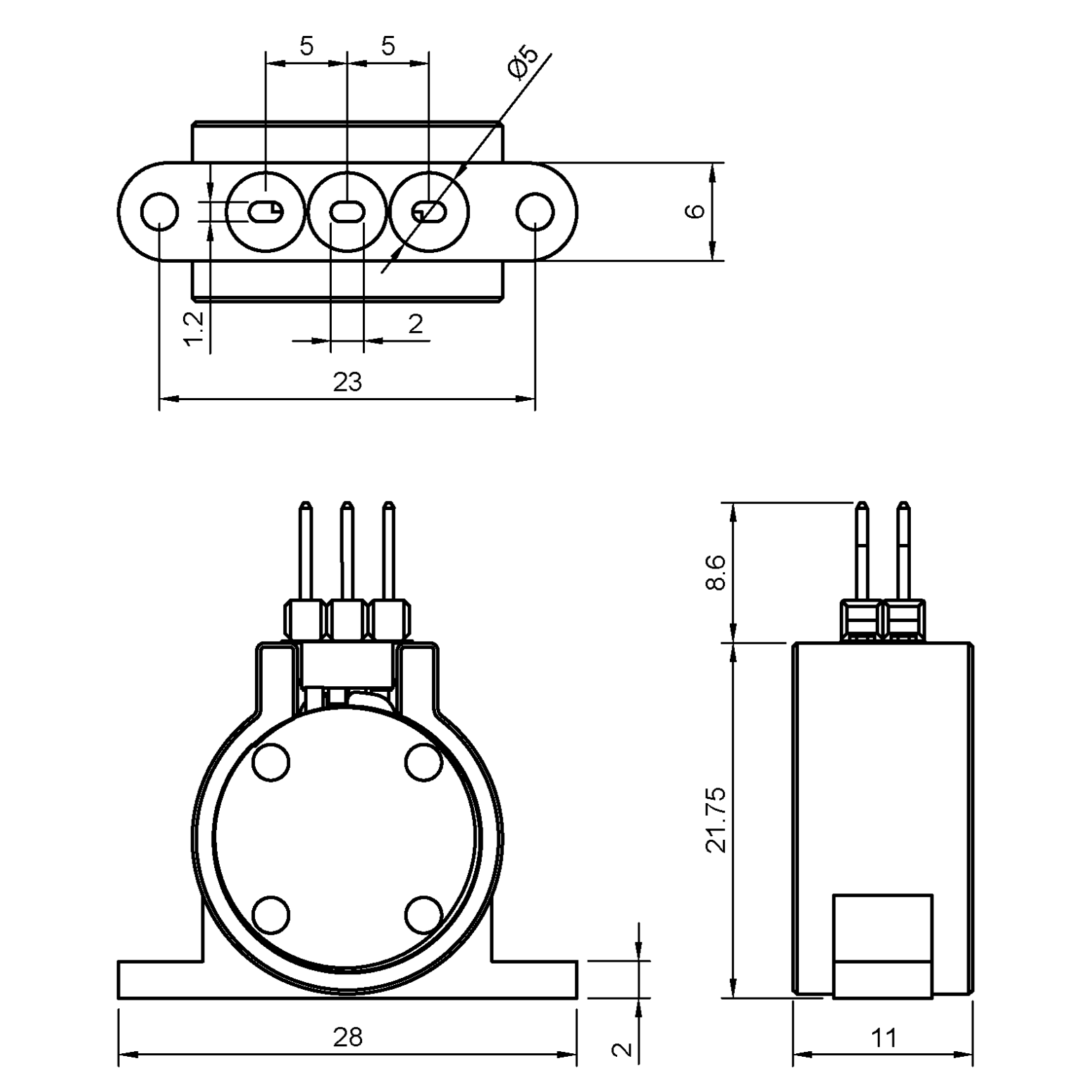

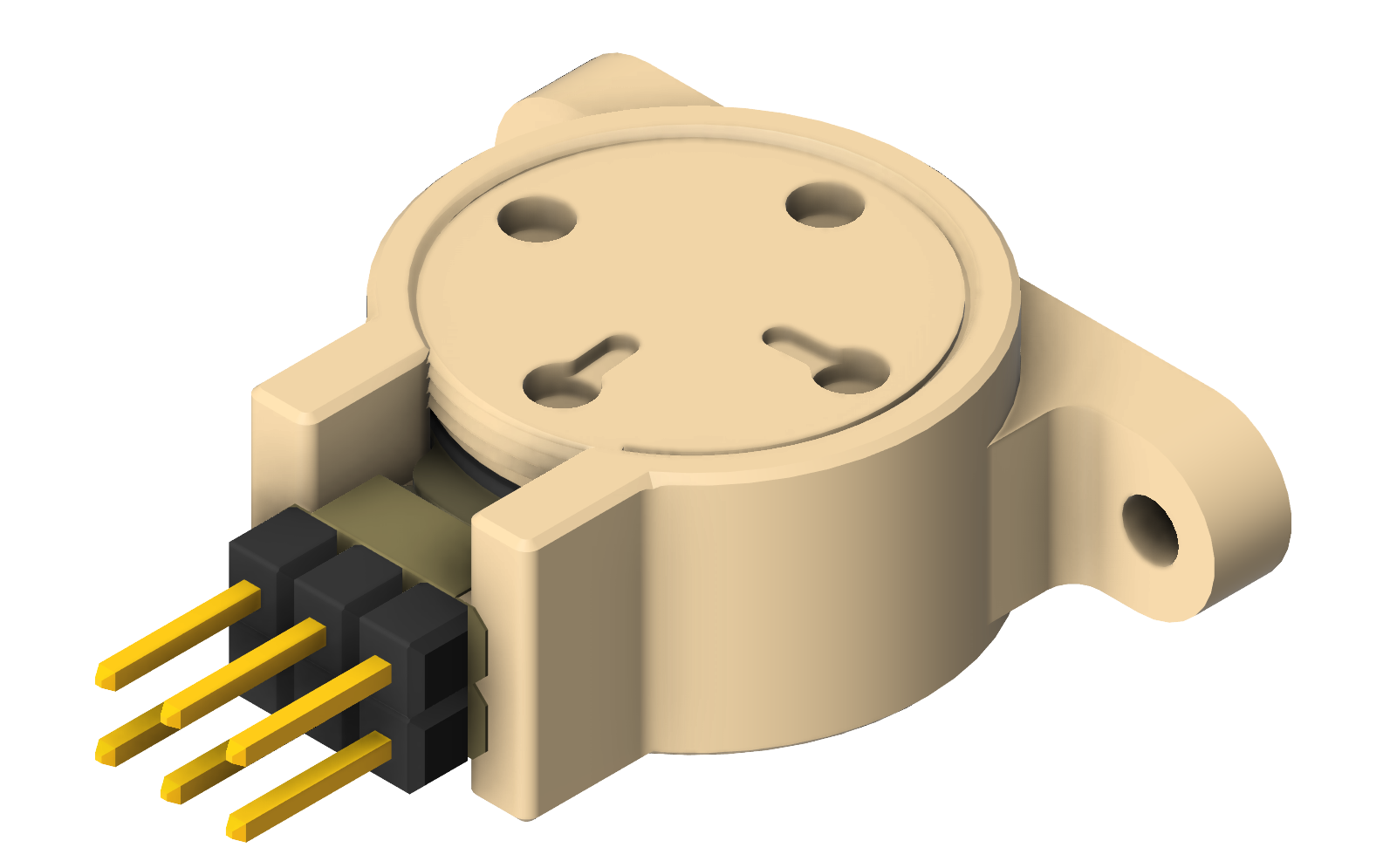

Designed to precisely control the flow or pressure between the ports, the Proportional valve is available in 2/2 and 3/3 configurations.
A normally closed variant of both configurations is also available upon request for applications requiring a passive closed condition when unpowered.
Thanks to its compact size, lightweight, battery-operable design, the muVaP proportional valves can be directly integrated into portable or embedded systems.
Technical Specifications
| Pressure: Up to 10 bar |
| Flowrate: Up to 50 l/min |
| Switching time: < 10 ms |
| Holding power: < 50 mW |
| Lifetime: > 30 Million cycle |
| Silent |
| Battery-operable |
